Monitor 4K 15.6 inch UHD 3840×2160 4K156-9HSD SEETEC

Xem thêm: Monitor HD 15 inch HDMI 3G-SDI P150-3HSD SEETEC

Thông số Monitor 4K 15.6 inch

• Hãng sản xuất: SEETEC
• Model: 4K156-9HSD
• Screen Size 15.6″ IPS
• Color Depth 16.7M colors (8-bits)
• Resolution 3840×2160 pixels
• Pixel Pitch 0.0897 x 0.0897 mm
• Aspect Ratio 16:9
• Brightness 300cd/m²
• Contrast Ratio 800:1
• Backlight LED
• Viewing Angle 85°/85°(L/R) 85°/85°(U/D)

Input

• 4 X HDMI HDMI (HDMI2.0x1 support 4K 60HZ; HDMI1.4×3 support 4K 30HZ)
• 1 X BNC SDI
• 1 X DVI DVI
• 1 X VGA VGA
• 2 X RCA Audio(L/R)

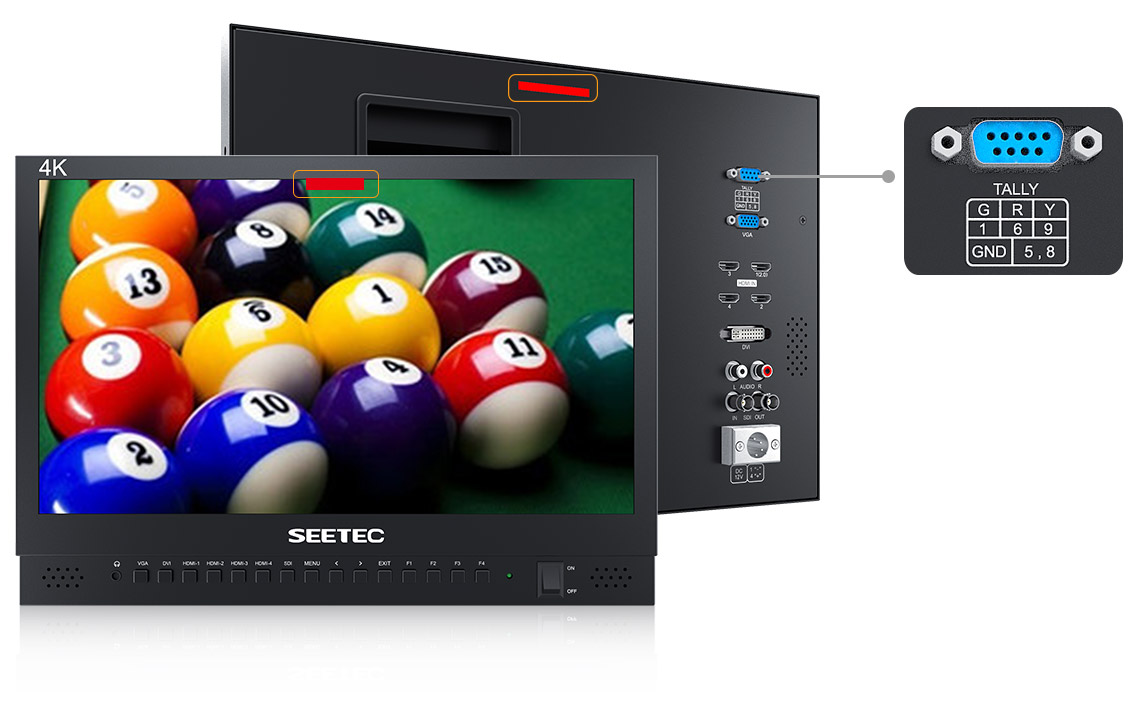

• 1 X DB-9 Tally

Output

1 X BNC SDI

Audio:

Audio Out Headphone, Speaker

General:

• Input Voltage DC12～24V (XLR)
• Power Consumption ≤18W
• Working Temperature -10°C~50°C
• Storage Temperature -20°C~60°C
• Unit Size (mm) 372L×262H×28.5D (mm) (Without Bracket)
• Unit Weight 2.03kg (Without Bracket)

SEEETEC 4K156-9HSD is the Ultra HD broadcast monitor with 4x4K HDMI input, 3G-SDI input/ loop out for native display up to 2160p60.
You get a professional broadcast monitor that supports the latest Ultra HD 3840×2160 resolutions, bring unbeatable image clarity in cinematic display.

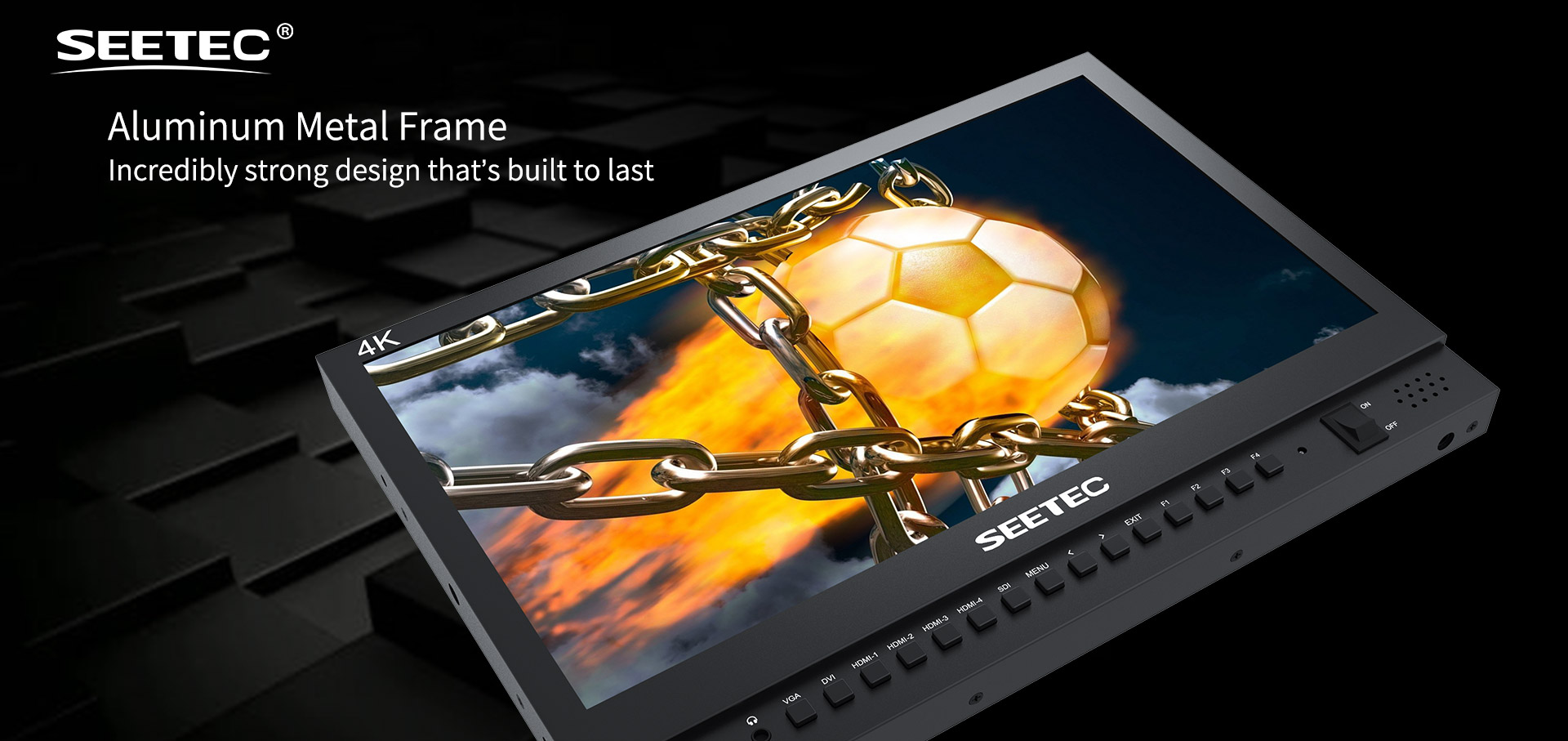

The machined metal design includes a built in control panel for using features such as the built in quad view, peaking filter, check field, image freeze, overscan, zoom, image flip, center markers, screen markers, pixel to pixel, color temperature and more, you can easily check focus and watch for color consistency across all of your cameras.

Extremely High Resolution
15.6 inch 3840 x 2160 resolution allows you to see every pixel in an Ultra HD image
Now you can install the perfect future proof monitoring solution because 4K156-9HSD will handle monitoring from all your SD, HD-SDI, 3G-SDI and 4K HDMI 2160P sources. The full resolution Ultra HD monitor allows you to see every single pixel in a 3840 x 2160 resolution HDMI input, even when running at a faster 60p frame rate! The fast frame rate support is perfect for fast motion such as sports, plus you get a totally future proof design!

Better Monitoring
IPS 170° wider view angle, precise color restoration
SEETEC 4K156-9HSD has a wide 170º viewing angle, which means it’s easy to see, even when several crew members are watching. 4K Ultra HD LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels.

Front Panel Control
Technical control at the touch of a button!
When you’re on location you need to be able to quickly and easily access the controls such as auxiliary functions and input selection. With 4K156-9HSD-384 that’s no longer a problem. The buttons are extremely durable, designed to last for years, and give you super fast access to all of the technical and professional broadcast controls you need during production.

Professional Connections
Connect up to 5 cameras
SEETEC 4K156-9HSD features a professional broadcast SDI monitor that also includes loads of HDMI connections! With four HDMI and one 3G-SDI inputs, you can connect up to 5 cameras, computers or other sources and work in all SD and HD formats up to 1080p60! That means you can start with affordable HDMI consumer cameras, or work with professional SDI broadcast cameras. You also get reference input, analog audio.

Built in Quad View
See more video sources on a single monitor
When you’re creating a live program from multiple cameras, it’s important to be able to see more video sources at the same time. 4K156-9HSD has four 4K HDMI inputs, one SDI input and loop put, DVI, VGA, supports quad view, dual view, single view monitoring functions, allowing you to get perfect multi camera monitoring in any location!

Built in Dual View
Amazing picture in picture effects
The PIP function lets you position and realize live video, all in real time. That means you can create professional picture in picture effects by adjusting the brightness, contrast, hue, saturation, sharpness, backlight. Using a picture in picture effect to superimpose a commentator when covering events such as sports, training videos, interviews and even gaming competitions.
