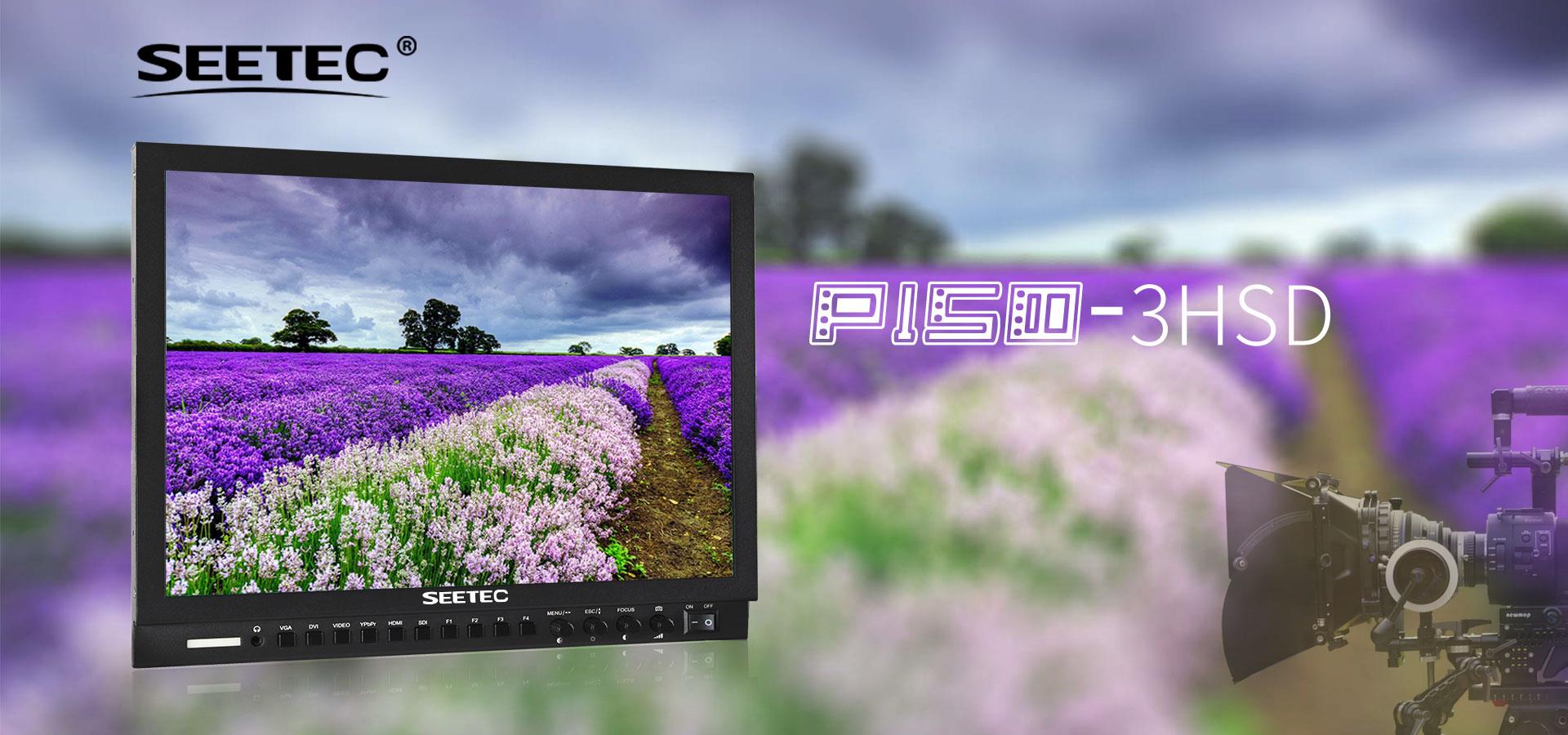

Monitor HD 15 inch HDMI 3G-SDI P150-3HSD SEETEC

Đơn giá: 13.300.000/1 chiếc (Chưa VAT)

Thương hiệu: SEETEC

Model: P150-3HSD

Màn hình: 15″ IPS

Độ phân giải: 1024×768

Kích thước: 331.1 x 282.6 x 33.8 mm

Trọng lượng: 2.6Kg

Bảo hành: 12 tháng.

Mô tả

Monitor P150-3HSD SEETEC có độ phân giải HD kích thước 15 inch với hỗ trợ định dạng HDMI 3G-SDI. P150-3HSD tỷ lệ tương phản 800:1 và độ sáng 350cd / m². P150-3HSD SEETEC giúp bạn đảm bảo mọi cảnh quay đều được lấy nét và mang đến những hình ảnh chuyên nghiệp chất lượng cao.

Monitor P150-3HSD SEETEC

Xem thêm: Monitor 4K HDMI IPS 13.3 inch 3G-SDI P133-9HSD SEETEC

THÔNG SỐ KỸ THUẬT:

Hãng sản xuất: SEETEC

Model: P150-3HSD

Screen Size 15″

Resolution 1024×768 pixels

Pixel Pitch 0.297(H)×0.297(V) mm

Aspect Ratio 4:3

Brightness 350cd/m²

Contrast Ratio 800:1

Backlight LED

Viewing Angle 80°/80°(L/R) 65°/80°(U/D)

Input:

1 X BNC 3G-SDI

1 X HDMI HDMI

3 X BNC YPbPr

1 X DVI-I DVI-I

1 X BNC Video

2 X RCA Audio(L/R)

Output:

1 X BNC 3G-SDI

1 X HDMI HDMI

3 X BNC YPbPr

1 X BNC Video

Audio:

Audio Out Stereo Headphone, Speaker

General:

Input Voltage DC9~24V

Power Consumption ≤15W

Working Temperature -10°C~50°C

Storage Temperature -20°C~60°C

Unit Size 331.1L×282.6H×33.8D mm (W/O Bracket)

Unit Weight 2.07kg (W/O Bracket)/ 2.60kg (W/Bracket)

SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.

Stability and Reliability
The full aluminum case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full aluminum case improves the anti-interference capability!
1024X768 Pixels HD Panel

With the P150-3HSD’s large size 15-inch 1024×768 HD panel, 4:3 ratio, 800:1 Contrast, 350cd/m², it’s good choice for film crews field application..

Monitor HD P150-3HSD SEETEC
Innovation OSD Operation
P150-3HSD not only set up four “F key” for peaking focus asist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC’s exclusive technology feature, which will bring you more convenient and rapid operate feeling.Monitor HD 15 inch HDMI 3G-SDI P150-3HSD SEETEC

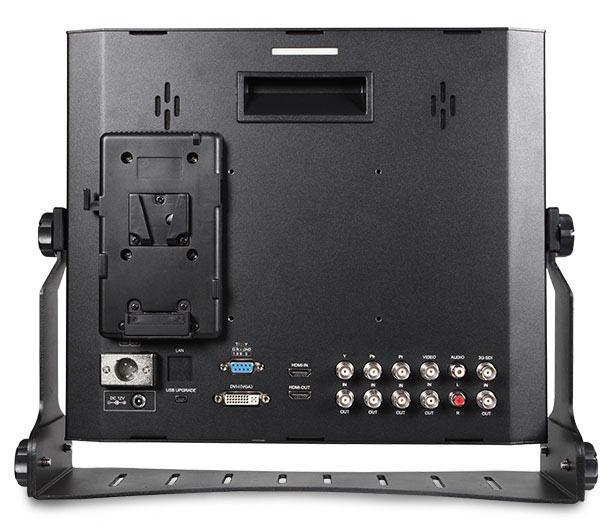

Multiple Inputs and Outputs
Input:
3G-SDI X 1
HDMI X 1
YPbPr X 3
DVI X 1
Video X 1
Auido (L/R) X 2

Output:
3G-SDI X 1
HDMI X 1
YPbPr X 3
Video X 1
Audio:
Stereo Headphone
Internal Speaker

monitor HD 15 inch giá rẻ

3-color Tally Light

Both front and rear side
There is front and rear TALLY lights for with 3 colors display (Red,Green,Yellow), and controlled via DB-9 ports on the rear panel.


Portable Sunshade

New extended screen hood, to acquire the ideal visual effect in almost all environments..

Monitor HD 15
